13 62 622 Removing and refitting/replacing nitrogen oxide sensor downstream of SCR catalytic converter (N47 D20 O 1 with SCR)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 7 020

WARNING: Risk of burning!
Only perform this repair work on an engine that has cooled down.

Necessary preliminary work:

Read out the fault memory of the DDE control unit.
Switch off ignition.
Remove EXHAUST SYSTEM .
Remove heat shield at rear.
Partially detach front heat shield.

Detach nitrogen oxide sensor (2) and remove from exhaust system.

Tightening torque 13 62 8AZ .

Fig 1: Identifying Exhaust System Nitrogen Oxide Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) and pull off.

Unscrew nuts (2).

Tightening torque 13 62 13AZ .

Maneuver out nitrogen oxide sensor and control unit for nitrogen oxide sensor and remove.

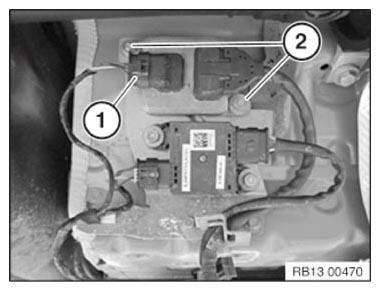

Fig 2: Identifying Nitrogen Oxide Sensor Connector And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

After the repair work has been completed:

Use the BMW Diagnosis System to perform the SCR adjustment.

Refer to:

Service function
SCR systems
Carry out activation and adjustments

Installation note:

Check stored error/fault messages.

Clear diagnostic fault entries from fault memory.
