51 24 140 Removing and installing/replacing rear window locking

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove TRIM FOR REAR LID

NOTE: Rear window must be open.

Disconnect plug connection (1).

Unfasten screws (2).

Feed out and remove rear window locking.

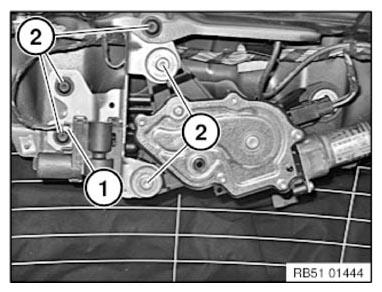

Fig 1: Rear Window Lock, Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
