51 24 133 Removing and installing/replacing drive for Automatic Soft Close drive on tailgate

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove TOP COVER FROM TAIL PANEL
Remove FLAP IN LUGGAGE COMPARTMENT TRIM PANEL ON LEFT

Pull out electric motor (1) from fixtures (2).

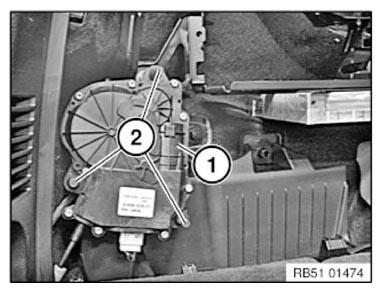

Fig 1: Electric Motor And Fixtures

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Unhook Bowden cable (2) on tailgate lock (3).

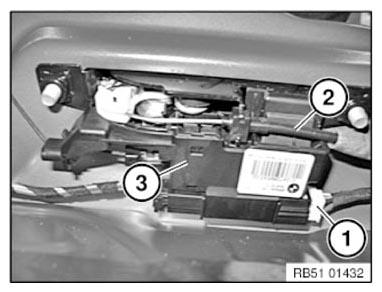

Fig 2: Tailgate Lock, Bowden Cable And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

F34 only:

Feed Bowden cable (1) out of clamps (2).

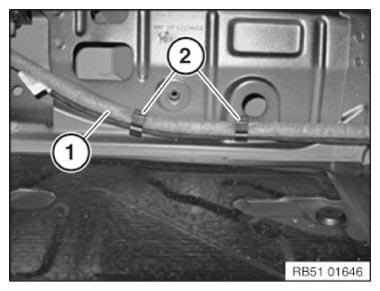

Fig 3: Bowden Cable And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
