51 49 002 Removing and installing/replacing trim panel for rear window frame, top

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Unclip and remove trim panel (1) using special tool 00 9 325 .

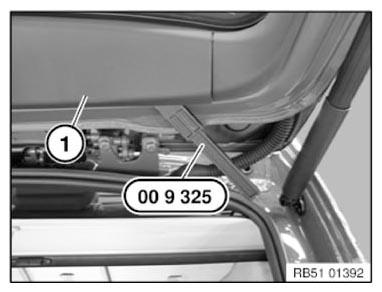

Fig 1: Removing Trim Panel Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Marked guides and clips (1) from trim panel (2) must not be damaged or missing.

If necessary, replace clips (1).

Replacement

Rebuild clip (1) of trim panel (2).

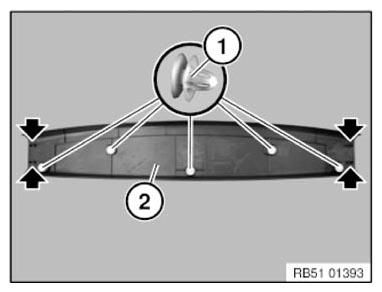

Fig 2: Trim Panel Clip
