51 16 480 Removing and installing or replacing front grab handle

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

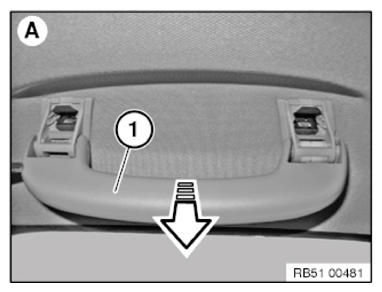

Fold grab handle (1) downwards.

Disengage and remove locking wedge (2) with offset screwdriver (3), as illustrated.

Fig 1: Removing Grab Handle Locking Wedge With Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

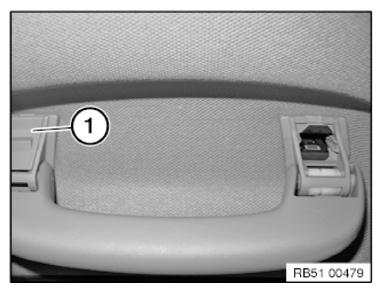

Repeat procedure on rear locking wedge (1).

Fig 2: Grab Handle Rear Locking Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

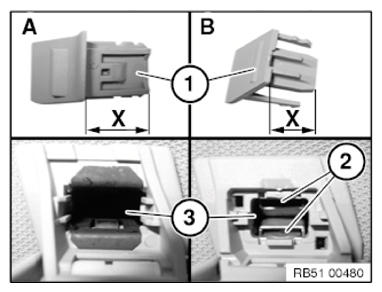

NOTE: The version of the grab handle must be determined for the following procedure.

Version	A	B
Stem length of locking wedge (1)	22 mm	15 mm
Retaining chamber (3)	No release tabs, fitted loose	Welded on grab handle, with release tabs (2)

Fig 3: Locking Wedge Stem Length

Courtesy of BMW OF NORTH AMERICA, INC.

Only version A

Jerk back grab handle (1) until grab handle (1) detaches.

Fig 4: Detaching Grab Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Only version B

Lightly pull grab handle (2) towards the inside by hand and hold under tension while releasing lower and upper tab (1) with screwdriver (3).

Remove grab handle (2) and place to side.

Fig 5: Pulling Grab Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Only after grab handle (1) is snapped in correctly can locking wedges (2) we fully locked in position in grab handle (1).

Replacement

NOTE: Only version B available as from September 2010.

Fig 6: Grab Handle Locking Wedges

Courtesy of BMW OF NORTH AMERICA, INC.
