51 16 355 Removing and installing/replacing driver's side fold-down compartment

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove DECORATIVE STRIP ON DASHBOARD ON LEFT

Open fold-down compartment (1).

Unfasten screws (2).

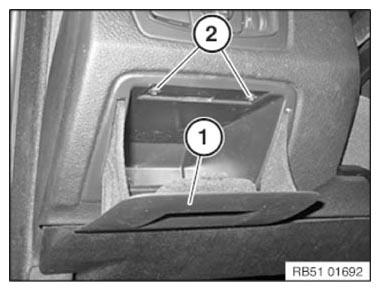

Fig 1: Fold-Down Compartment And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Fold-down compartment (2) is screwed onto holder (1) in area (A) and is fastened to dashboard in this way.

Remove holder (1) though opening.

Feed out fold-down compartment (2) in direction of arrow.

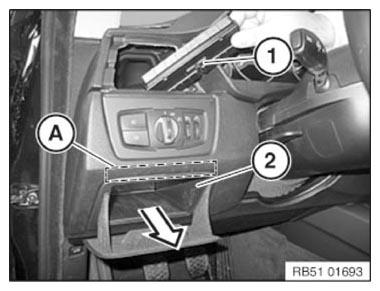

Fig 2: Pulling Fold-Down Compartment

Courtesy of BMW OF NORTH AMERICA, INC.
