51 32 170 Removing and installing/replacing door window glass, front left or right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SOUND INSULATION IN FRONT DOOR
Remove WEATHER STRIP ON INSIDE OF FRONT DOOR

Move door window (1) until the mount stop (2) can be operated via the recess (3) on the guide rails (4).

Using a screw driver, press stop of mount (2) on the left and right toward the rear and disengage door window (1) toward the top.

Installation note:

Make sure door window (1) is correctly seated on rubber window seal at front and rear.

Door window (1) must be correctly clipped into stop of mount (2).

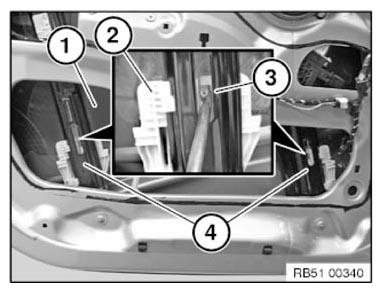

Fig 1: Door Window, Recess And Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Turn door window glass and lift out rearwards/top.

Installation note:

The door window does not require adjustment.

Fig 2: Removing Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
