51 48 001 Removing and installing/replacing insulation lining on engine hood/bonnet

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Example shown on F01: There may be differences in detail in the case of other vehicle types.

Release all expanding rivets/clips on damping material (1).

Remove damping material (1).

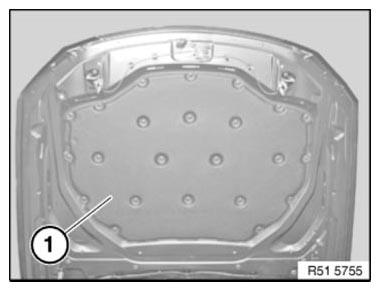

Fig 1: Damping Material

Courtesy of BMW OF NORTH AMERICA, INC.
