51 11... Attaching/replacing support for number plate (using laser)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 407 566

WARNING: Danger of injury!
Laser beam on the special tool.
Do not look into the beam!

Set vehicle and special tool 2 407 566 on a flat surface.

Switch on laser (Position without automatic level).

Activate laser horizontally and vertically.

Fig 1: Special Tool (2 407 566)

Courtesy of BMW OF NORTH AMERICA, INC.

F30/F31 USA/Japan without active cruise control (ACC):

Mark center of support (1).

Position and center align the special tool for the vehicle.

Align vertical laser beam (2) in the center of the vehicle (Ex: BMW badge).

Align support (1) with vertical laser beam and contour of bumper panel.

Mark attachment point.

Remove special tool 2 407 566 .

Screw down support (1) on the marked attachment point.

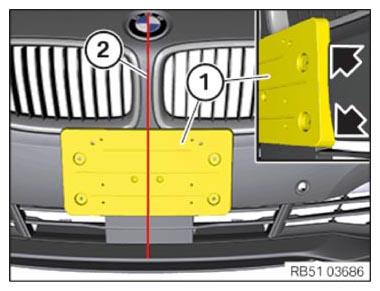

Fig 2: Number Plate Support Center Mark

Courtesy of BMW OF NORTH AMERICA, INC.

F30/F31 USA/Japan with active cruise control (ACC):

Mark center of support (1).

Position and center align the special tool for the vehicle.

Align vertical laser beam (2) in the center of the vehicle (Ex: BMW badge).

Align support (1) with vertical laser beam and contour of bumper panel.

Mark attachment point.

Remove special tool 2 407 566 .

Screw down support (1) on the marked attachment point.

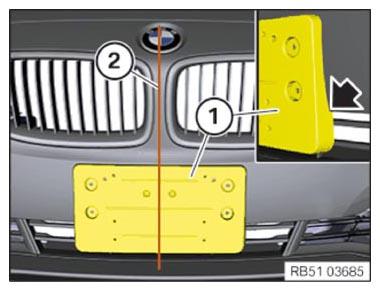

Fig 3: Aligning Vertical Laser Beam

Courtesy of BMW OF NORTH AMERICA, INC.
