31 35 000 Removing and installing/replacing front anti-roll bar
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove ANTI-ROLL BAR LINKS FROM ANTI-ROLL BAR .
- Lower front axle support . See 31 11 506 LOWERING/RAISING FRONT AXLE SUPPORT (UNIVERSAL LIFTER) .

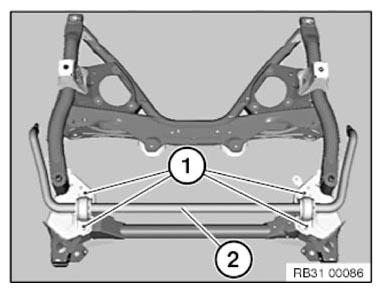

Unscrew nuts (1).
Tightening torque 31 35 1AZ .
Remove retaining brackets.
Remove anti-roll bar (2) forward.
Installation note:
Replace nuts (1).
Check both rubber mounts for damage.
- In the event of rubber mount damage, the anti-roll bar must be renewed.
