31 35 005 Removing and installing/replacing push rod (anti-roll bar link) for left/right anti-roll bar
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Risk of damage!
- Avoid bending the head of the anti-roll bar during assembly!
- An impact screwdriver must not be used!
Necessary preliminary tasks:
- Remove FRONT WHEEL .
IMPORTANT:

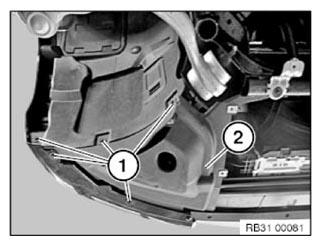

It is important to counterhold Torx socket when loosening push rod screw connection (1).
Unscrew nuts (1).
Tightening torque 31 35 2AZ .
Remove anti-roll bar link (2).
Installation note:
Replace self-locking nuts.
