61 31 362 Removing and installing (replacing) wireless remote control

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove CAPPING TRIM PANEL, TOP RIGHT

Unfasten plug connection (1) and disconnect.

Release screw (2).

Remove control unit (3).

Installation note:

Position control unit (3) so that positioning pin on rear side engages in associated bore hole.

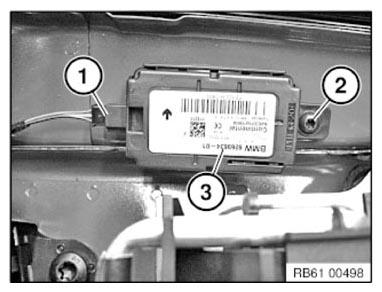

Fig 1: Identifying Plug Connection, Control Unit And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
