61 14 035 Remove/install/replace power distribution box front positive battery cable

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATION for handling vehicle battery.

Necessary preliminary tasks:

Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT

NOTE: Graphics shown on the F20 by way of example, deviations in detail are possible in other models.

Turn locks (1) 90° counterclockwise.

Unlock catch (3).

Remove cover (2).

Fig 1: Identifying Locks, Catch And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

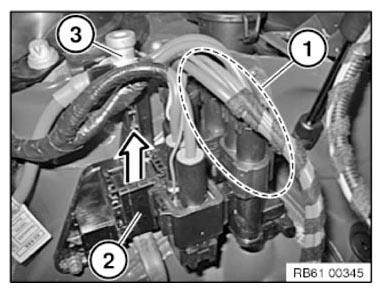

Release and disconnect all plug connections in area (1).

Disengage cover (2) in direction of arrow and take off.

Release nut from positive wire (3) and remove retaining bracket (3).

Tightening torque 61 21 4AZ

Installation note:

Make sure all plug connections are correctly latched.

Fig 2: Removing Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure cover (2) is correctly locked.

Risk of short circuits!

Ensure positive wire (3) is correctly seated.

Release latch mechanism (arrow) and pull relay carrier (1) up and out of power distribution box.

Release nut from flat positive terminal wire (2) and remove flat positive terminal wire (2).

Tightening torque 61 21 4AZ .

Installation note:

Risk of short circuits!

Make sure flat positive terminal wire (2) is correctly seated.

Fig 3: Identifying Relay Carrier, Latch Mechanism, Positive Wire, And Flat Positive Terminal Wire

Courtesy of BMW OF NORTH AMERICA, INC.

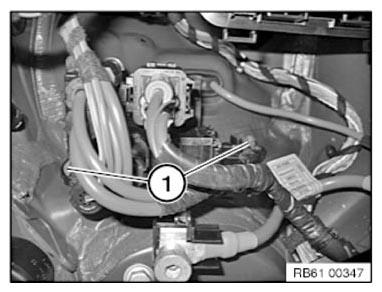

Release nuts (1) and remove power distribution box.

Tightening torque 61 21 2AZ .

Fig 4: Identifying Power Distribution Box Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install power distribution box (2) as displayed in diagram with washers (1) and new nut (3).

Fig 5: Identifying Power Distribution Box, Washers And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
