61 14 035 Remove and install/replace power distribution box of positive battery cable (from 02/13)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATION for handling vehicle battery.

Necessary preliminary tasks:

Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT
Remove COWL PANEL COVER

NOTE: Removal and installation are described separately.

Removal:

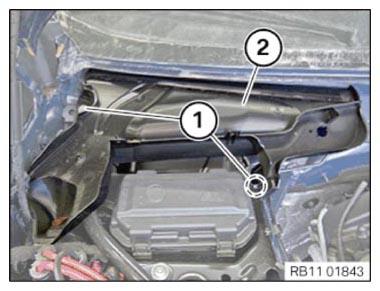

Release screws (1).

Remove attachment part of partition wall (2).

Fig 1: Identifying Partition Wall And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable strap (1).

Unlock and disconnect connector (2).

Loosen the nut from positive wire (3) and remove positive wire (3).

Fig 2: Identifying Positive Wire, Connector And Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen latch mechanism (1) and pull off socket (2) upwards.

Fig 3: Identifying Latch Mechanism And Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen and remove cover (1) upwards.

Loosen the nut (2) and unthread positive wire.

Release nuts (3 and 4).

Pull out the power distribution box (5).

Fig 4: Identifying Power Distribution Box, Cover And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

Install power distribution box (2) as displayed in diagram with washers (1) and new nut (3).

Fig 5: Identifying Power Distribution Box, Washers And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Ensure that the washers are on threaded bolt.

Insert power distribution box (5).

Tighten nut (4).

Tightening torque 61 21 2AZ .

Tighten new nut (3).

Tightening torque 61 21 2AZ .

Fig 6: Identifying Power Distribution Box, Cover And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Thread positive wire and tighten with nut (2).

Tightening torque 61 21 4AZ .

Insert and close cover.

Connect socket (2) from top to power distribution box.

Installation note:

Ensure correct latch mechanism (1).

Fig 7: Identifying Latch Mechanism And Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Connect all connectors (2).

Tighten positive wire (3) using nut.

Tightening torque 61 21 4AZ

Replace cable tie (1).

Installation note:

Pay attention to correct latch mechanism of all connectors.

Risk of short circuits!

Ensure positive wire (3) is correctly seated.

Fig 8: Identifying Positive Wire, Connector And Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Remove attachment part of partition wall (2).

Tighten down screws (1).

Fig 9: Identifying Partition Wall And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
