61 14 010 Removing and installing/replacing distribution box (rear)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATION for handling vehicle battery.

Necessary preliminary tasks:

Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT

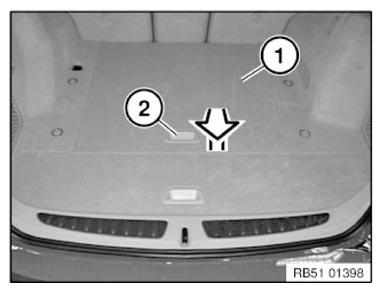

Raise luggage compartment floor trim panel (1) at handle (2) and remove in direction of arrow.

Fig 1: Removing Luggage Compartment Floor Trim Panel

G10167947

Courtesy of BMW OF NORTH AMERICA, INC.

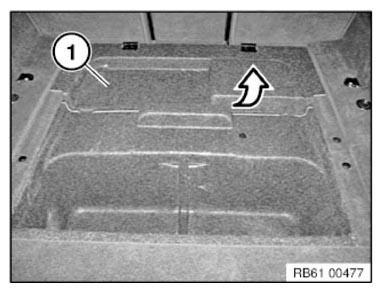

Open storage tray in luggage compartment floor at front (1) in direction of arrow and remove.

Fig 2: Removing Front Luggage Compartment Floor Storage Tray

G10167948

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 61 35 8AZ .

Remove power distribution box (2) from guide (3) in direction of arrow.

Fig 3: Removing Power Distribution Box From Guide

G10098389

Courtesy of BMW OF NORTH AMERICA, INC.

Release and disconnect all plug connections in area (1).

Remove power distribution box (2)

Installation note:

Make sure all plug connections are correctly locked.

Fig 4: Identifying Power Distribution Box And Plug Connections

G10098390

Courtesy of BMW OF NORTH AMERICA, INC.
