61 35 360 Removing and installing/replacing control unit for camera-based driver support systems (KAFAS)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT
Remove TRIM PANEL FOR PEDAL MECHANISM

NOTE: For purposes of clarity, schematic diagram shows footwell side trim panel removed.

Release latch mechanisms on equipment holder (1) in direction of arrow.

Feed out control unit (2) from equipment holder towards top.

Disconnect plug connections (3) and remove control unit (2).

Installation note:

Make sure control unit (2) is correctly installed in equipment holder.

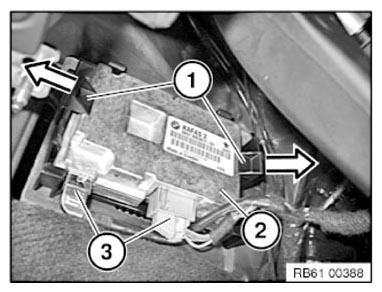

Fig 1: Releasing Latch Mechanisms On Equipment Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .

Carry out calibration:

Service function
Body
Display and information functions
Camera-based driver support systems
Calibration of lane departure warning
