61 35 196 Removing and installing (replacing) control unit for automatic operation of tailgate system: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Replacement: observe notes on REPLACING THE CONTROL UNIT .
Disconnect BATTERY CABLE FROM NEGATIVE TERMINAL

Unlock plug connections (1) and disconnect.

Release catches (2).

Pull control unit (3) out of holder (4).

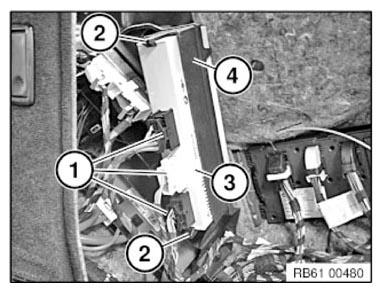

Fig 1: Identifying Control Unit, Holder, Catches And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
