72 11 096 Removing and installing/replacing rear left or right lower straps

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with SAFETY INSTRUCTIONS for handling airbag modules and pyrotechnical belt tensioners.

Necessary preliminary tasks:

Remove REAR SEAT

Removal of left lower strap:

Release screw (1).

Tightening torque 72 11 23AZ .

Unfasten PLUG CONNECTION (2) and disconnect.

Remove lower strap (3).

Installation note:

Lower strap is coded against incorrect assembly.

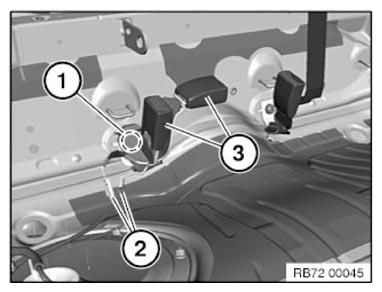

Fig 1: Identifying Screw, Plug Connection And Lower Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of right lower strap:

NOTE: Remove the middle lower strap only in combination with the right lower strap.

Release screw (1).

Tightening torque 72 11 23AZ .

Unlock PLUG CONNECTIONS (2) and disconnect.

Remove lower strap (3).

Installation note:

Lower strap is encoded against incorrect assembly (3).

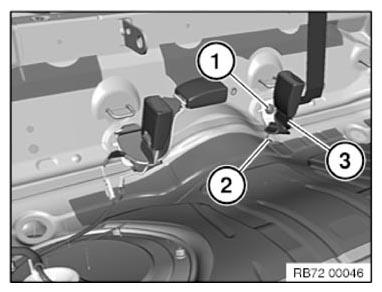

Fig 2: Identifying Screw, Plug Connections And Lower Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Lower strap with belt tensioner:

Removal is depicted for the left lower strap; the right strap is removed in the same manner.

Unfasten PLUG CONNECTION (2) and disconnect.

Release screw (1).

Tightening torque 72 11 23AZ .

Remove lower strap (3).

Installation note:

Coding (4) determines the installation position and prevents the lower strap (3) from turning.

NOTE: Only remove the right lower strap (5) in combination with the middle lower strap.

Fig 3: Identifying Screw, Lower Belt Fitting, Pin And Middle Lower Belt Fitting

Courtesy of BMW OF NORTH AMERICA, INC.
