11 23 010 Removing and installing/replacing the vibration damper (N47)

Special tools required:

• 11 6 480
• 11 7 221
• 11 7 222
• 11 7 223

Necessary preliminary tasks:

• Remove ACOUSTIC COVER
• Remove alternator DRIVE BELT .

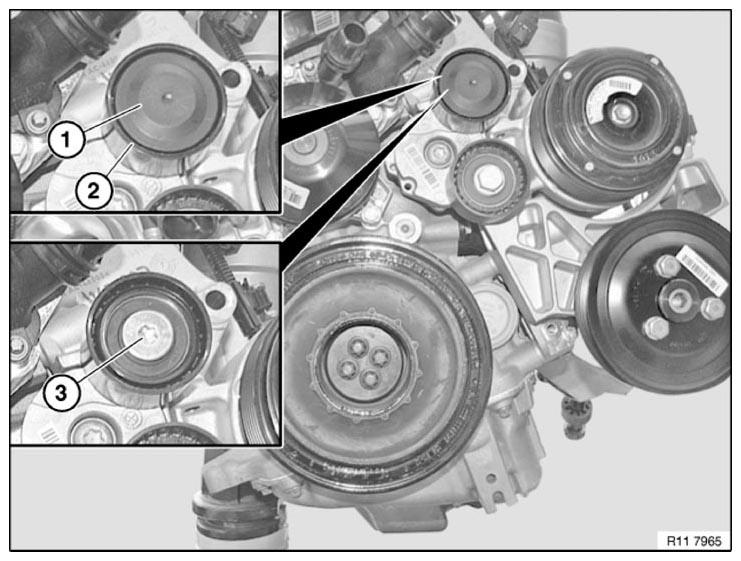

Using a suitable tool, remove the protective cap (1) from deflecting element (2).

Release screw (3).

Tightening torque: 11 00 4AZ .

Remove deflection pulley (2).

Fig 1: Removing Protective Cap From Deflecting Element

Courtesy of BMW OF NORTH AMERICA, INC.

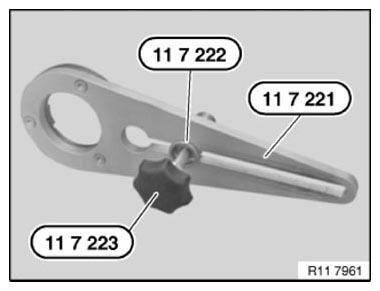

Assemble special tool 11 7 221 with special tool 11 7 222 and 11 7 223

Fig 2: Assembling Special Tool (11 7 221) With Special Tool (11 7 222)

Courtesy of BMW OF NORTH AMERICA, INC.

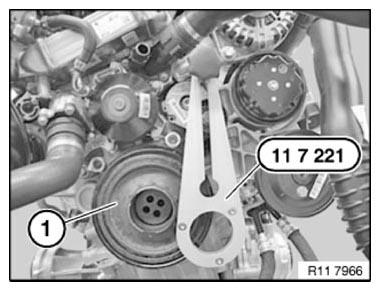

Screw special tool 11 7 221 with special tool 11 7 223 into receptacle of the guide pulley.

Secure special tool 11 7 221 vibration damper (1).

Fig 3: Turning Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

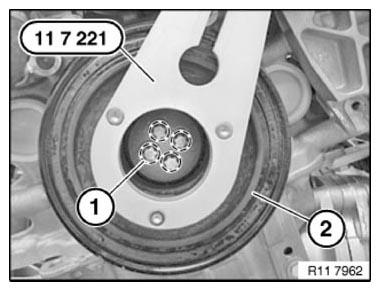

Loosen bolts (1) on the vibration absorber (2).

Installation note:

Fig 4: Loosening Bolts On Vibration Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Replace RADIAL SHAFT SEAL  at front.

Installation note:

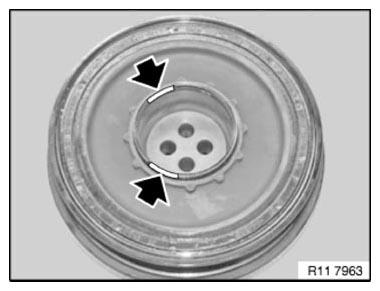

Position vibration damper as illustrated when refitting.

Fig 5: Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

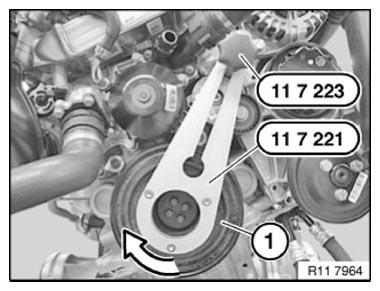

Secure the special tool 11 7 221 again in the area of the vibration damper to tighten the screws.

Tighten screws crosswise.

Fig 6: Securing Special Tool (11 7 221) Of Vibration Damper To Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Undo bolts (1) on vibration damper (2).

Remove special tool 11 7 221 in the area of the vibration damper (1).

Remove vibration damper.

Tightening torque: 11 23 1AZ .

Fig 7: Loosening Bolts On Vibration Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
