11 14 005 Replacing the front crankshaft seal (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Removing VIBRATION DAMPER :
Lever out FPM ring using suitable tool.

IMPORTANT: Accelerator pedal module rings must be installed in a dry condition.
Do not use engine oil or lubricant.

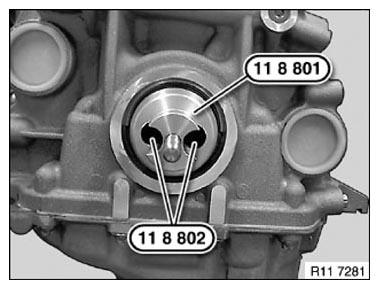

Fasten special tool 11 8 801 with 11 8 802 on the crankshaft.

Fig 1: Installing Special Tool (11 8 801 With 11 8 802) On Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

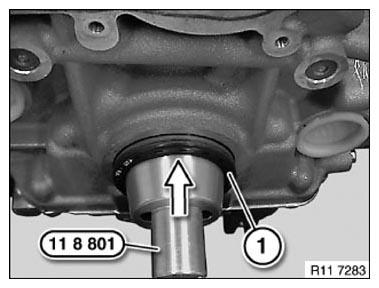

Position accelerator pedal module ring on the special tool 11 8 801 .

Fig 2: Positioning Accelerator Pedal Module Ring On Special Tool (11 8 801)

Courtesy of BMW OF NORTH AMERICA, INC.

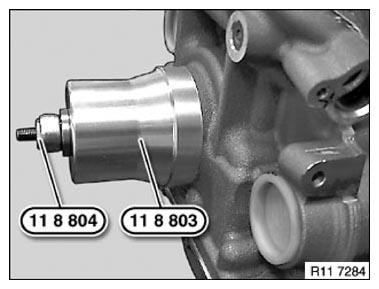

Pull on accelerator pedal module-ring with special tool 11 8 803 and 11 8 804 .

Screw in special tool 11 8 803 until it is flush with the crankcase.

Fig 3: Pulling Accelerator Pedal Module-Ring With Special Tool (11 8 803)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

IMPORTANT: Do not start engine without drive belt (risk of damage!) .
Check engine for leak tightness.
