11 34 715 Replacing all valve springs (N20, N26)

Special tools required:

• 11 4 481
• 11 4 482
• 11 8 840
• 11 9 000
• 11 9 007

Necessary preliminary tasks:

• Remove CYLINDER HEAD .
• Remove EXHAUST CAMSHAFT .
• Remove INTERMEDIATE LEVER .
• Remove INTAKE CAMSHAFT .
• Remove ROCKER ARM .

Place cylinder head on special tool 11 9 000 .

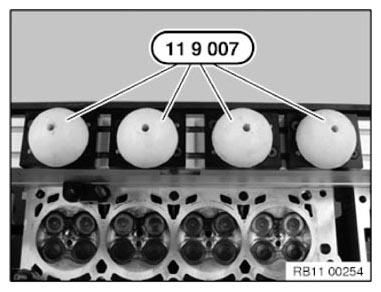

Align special tool 11 9 007 on particular combustion chamber.

Fig 1: Aligning Special Tool (11 9 007) On Particular Combustion Chamber

Courtesy of BMW OF NORTH AMERICA, INC.

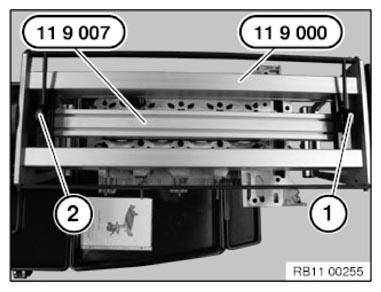

Position special tool 11 9 007 on cylinder head.

Push locks (1) and (2) toward inside and pre-load via eccentric shaft.

Fig 2: Positioning Special Tool (11 9 007) On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Press down valve springs with special tool 11 8 840 .

Fig 3: Pressing Down Valve Springs With Special Tool (11 8 840)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove valve key (1) with a magnet.

Remove valve spring with spring cups.

If individual components are to be reused, they must be placed in neat order in special tool 11 4 481 .

Fig 4: Removing Valve Key With Magnet

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Valve Spring Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Valve springs are marked in color (1).

Colors for intake valves:

• Green/blue
• Yellow/Blue

Colors for discharge valves:

• Green/white
• Yellow/white

Install the valve spring so that the larger diameter (X) points to the lower spring cup.

Arrangement:

1. Valve
2. Valve stem seal with lower spring cup
3. Valve spring
4. Upper spring cup
5. Valve keys
   Fig 6: Upper/Lower Spring Plate, Valve Spring And Valve Stem Seal

   Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME; if necessary, readjust uniform mixture distribution.
