11 37 010 Removing and installing/replacing intermediate levers (N20, N26)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: Risk of injury in event of incorrect use.

IMPORTANT: Improper handling. Risk of damage!

Necessary preliminary tasks:

Remove ALL IGNITION COILS AND INJECTOR SHAFTS
Remove stop screws for eccentric shaft

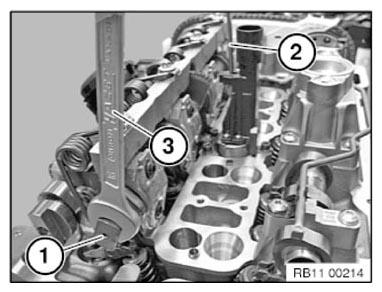

IMPORTANT: Secure eccentric shaft (1) with open-end spanner (3) (risk of return stroke).

Slowly adjust eccentric shaft (1) to minimum lift via servomotor using 4-mm hexagon socket wrench (2) and open-end spanner (3).

Fig 1: Adjusting Eccentric Shaft Using Hexagon Socket Wrench And Open-End Spanner

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1) on the oil spray nozzle.

Tightening torque: 11 37 4AZ .

Unclip oil spray nozzle (2) from the bracket on the actuator drive (3) in direction of arrow.

Fig 2: Removing Oil Spray Nozzle From Bracket On Actuator Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Remove minimum stroke stop (1).

Tightening torque: 11 37 5AZ .

Fig 3: Minimum Stroke Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 7 110 on return spring (1) (see arrows).

Fig 4: Special Tool (11 7 110) On Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury in event of incorrect use.

IMPORTANT: Improper handling. Risk of damage!

Place special tool 11 7 110 flat on cylinder head.

Fig 5: Turning Knurled Screw Using Special Tool (11 7 110)

Courtesy of BMW OF NORTH AMERICA, INC.

Turn knurled screw (1) in direction of arrow until both clamping levers secure return spring in gate.

Return spring is correctly preloaded when both clamping levers are parallel to guide block.

Fig 6: Installing Return Spring Using Special Tool (11 7 110)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!

Left and right return springs (1) must be positioned in lateral guide of special tool 11 7 110 .

Fig 7: Return Springs Position In Lateral Special Tool (11 7 110)

Courtesy of BMW OF NORTH AMERICA, INC.

Preload return spring with lever (1) on special tool 11 7 110 in direction of arrow.

Fig 8: Checking Preload Return Spring With Lever On Special Tool (11 7 110)

Courtesy of BMW OF NORTH AMERICA, INC.

Lock special tool 11 7 110 with catch on lever (1).

IMPORTANT: Screw connection on throttle return spring can only be released with secured special tool 11 7 110 .

Fig 9: Clamp Return Spring With Knurled Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 10: Screws And Special Tool (11 7 110)

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury in event of incorrect use.
Lever (1) is preloaded.

IMPORTANT: Improper handling. Risk of damage!

Fig 11: Pressing Back Latching Hook Using Special Tool (11 7 110)

Courtesy of BMW OF NORTH AMERICA, INC.

Secure lever (1).

Press back latching hook (2).

Return spring tension can now be released.

Release knurled screw (1) on special tool 11 7 110 in direction of arrow.

Fig 12: Releasing Knurled Screw On Special Tool (11 7 110)

Courtesy of BMW OF NORTH AMERICA, INC.

Release special tool 11 7 110 in direction of arrow from return spring (1).

Fig 13: Releasing Special Tool (11 7 110) On Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Press return spring (1) apart.

Remove return spring (1) upward.

Fig 14: Pressing Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Uniform distribution must not be changed.
Place all components in a clean and orderly condition in special tool 11 4 481 .

In the case of an engine which has already been in use, all components must be reinstalled in the same positions.

Fig 15: Special Tools Kit

Courtesy of BMW OF NORTH AMERICA, INC.

Eccentric shaft with bearing
Bearing caps of eccentric shaft (set out in order)
Intake camshaft
Bearing caps of intake camshaft (set out in order)
Intake valves with valve springs
Valve heads and valve keys
Rocker arm with hydraulic valve clearance compensating element (set out in order).
Return springs.
Gates (set out in order)
Intermediate levers (set out in order)

Release screws (1) on gate (2).

Tightening torque: 11 37 1AZ .

Place all gates (2) in neat order in special tool 11 4 481 .

Installation note:

Mixing up the gates (2) will cause the engine to suffer idle-speed fluctuations.

Fig 16: Screws On Guide Block

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

All contact surfaces (1) of gates must be clean and free from oil and grease. If necessary, clean contact surfaces (1).

Fig 17: Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out intermediate levers (1).

Place all intermediate levers (1) in neat order in special tool 11 4 481 .

Installation note:

Mixing up the intermediate levers (1) will cause the engine to suffer idle-speed fluctuations.

Installation note:

All contact surfaces must be clean and free of oil and grease. If necessary, clean contact surfaces.

Fig 18: Intermediate Lever

Courtesy of BMW OF NORTH AMERICA, INC.

All intermediate levers are classified.

All intermediate levers must be reinstalled in the same positions in an engine which has already been in use.

Intermediate levers are classified from 1 to 5.

Fig 19: Intermediate Levers

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before installing intermediate levers (1), make sure rocker arms are correctly positioned.
Risk of damage!

Fig 20: Roller Cam Followers

Courtesy of BMW OF NORTH AMERICA, INC.

Install intermediate levers (1).

Fig 21: Intermediate Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Fit gate (2) cleanly into recess.

Tighten screws (1) hand-tight.

Check that intermediate levers are in correct installation position.

Release screws (1) by a 1/4 turn.

Fig 22: Guide Block And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 4 450 on screw connection of eccentric shaft and set adjusting screw on special tool 11 4 450 , if necessary.

Turn eccentric lever on special tool 11 4 450 in direction of arrow.

Gate is now preloaded.

Fasten screws (1) of gates.

Tightening torque: 11 37 1AZ .

Fig 23: Turning Eccentric Lever On Special Tool (11 4 450)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

At cylinder no. 3, the gate can be preinstalled with one screw (internal) only.

Oil spray nozzle is fitted only after return spring has been installed.

Graphic N55.

Press return spring (1) apart.

Install return spring (1).

Graphic N55.

Fig 24: Pressing Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Install return spring (2) on gate.

Installation note:

Insert return spring (2) in intermediate lever (1) (see arrow).

Check that rocker arm (3) is in correct installation position.

Fig 25: Inserting Return Spring In Intermediate Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 7 110 on return spring.

Fig 26: Releasing Special Tool (11 7 110) On Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Clamp throttle return spring with knurled screw (1) in direction of arrow.

Fig 27: Clamping Throttle Return Spring With Knurled Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Return spring (1) is positioned correctly when latching hooks surround return spring (1).

Fig 28: Positioning Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury in event of incorrect use.

IMPORTANT: Improper handling. Risk of damage! Check return spring on intermediate lever to ensure correct installation position.

Fig 29: Pressing Special Tool (11 7 110) To Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Press special tool 11 7 110 to stop in direction of arrow.

IMPORTANT: Observe thread on cylinder head. Risk of damage!

Tighten bolt (1).

Tightening torque: 11 37 2AZ .

Fig 30: Screws And Special Tool (11 7 110)

Courtesy of BMW OF NORTH AMERICA, INC.

Retract oil spray nozzle (2) on actuator drive (3).

Engage bolt (1) and release back to 90°.

For exact positioning of the oil spray nozzle (2) audibly clip it in at the top.

Tightening torque: 11 37 4AZ .

Fig 31: Removing Oil Spray Nozzle From Bracket On Actuator Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
