11 00 050 Removing and installing engine (N20, N26)

Special tools required:

• 11 0 000
• 009 0 030
• 72 15 8 108 670
• 13 5 160

Necessary preliminary work:

• Disconnect the BATTERY CABLE NEGATIVE TERMINAL .
• Remove acoustic cover
• MOVE engine compartment lid into service position.
• Remove transmission  . See 24 00 033 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION (GA8HP45Z) (N20, N26) AWD .
• Remove the CATALYTIC CONVERTER .
• Drain engine oil .
• Remove SOUND INSULATION bulkhead upper part.
• Remove INTAKE SILENCER HOUSING .
• REMOVE bottom clean air pipe.
• REMOVE LEFT CHARGE AIR DUCT .
• Remove RIGHT CHARGE-AIR DUCT .
• Detach all coolant hoses from engine.
• Remove coolant thermostat .
• Remove AIR CONDITIONING COMPRESSOR and place to one side (no drawing off).
• Remove FRONT AXLE DIFFERENTIAL (only all-wheel drive).

For removing and installing the engine, the towing hook 72 15 8 108 670 is required.

Fig 1: Towing Hook (72 15 8 108 670)

Courtesy of BMW OF NORTH AMERICA, INC.

Slightly lift service cover (2) from rubber mount (1) until lock of cover (3) is accessible.

Press together lock and remove cover (3).

Fig 2: Service Cover From Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

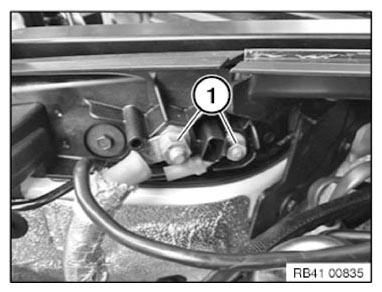

Release nuts (1) and remove positive battery cables from positive battery connection point.

Tightening torque: 12 42 3AZ/4AZ .

Fig 3: Nuts And Positive Battery Cables

Courtesy of BMW OF NORTH AMERICA, INC.

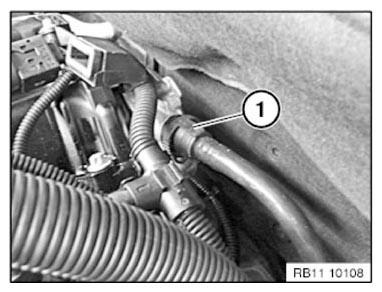

Release vacuum line (1) to vacuum pump.

Fig 4: Vacuum Line

Courtesy of BMW OF NORTH AMERICA, INC.

Detach the fuel line at the snap fastener (1).

Fig 5: Fuel Line Snap Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

Seal fuel lines with seals (1) and (2) from set of special tools 13 5 160 .

Fig 6: Seal Fuel Lines With Seals

Courtesy of BMW OF NORTH AMERICA, INC.

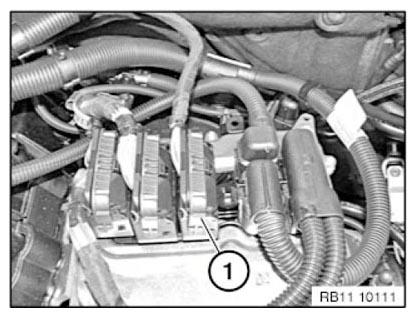

Unlock and pull off connector (1) from DME control unit.

Place engine wiring harness to one side.

Fig 7: DME Control Unit Connector

Courtesy of BMW OF NORTH AMERICA, INC.

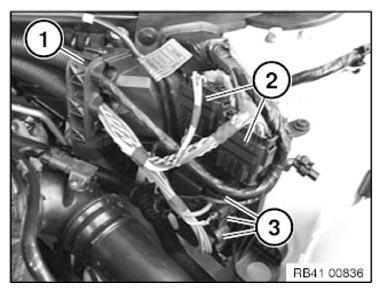

Open retaining bracket (1) for engine wiring harness.

Unlock and pull off connectors (2) and (3) at power distribution module.

Securely attach engine wiring harness to engine.

Fig 8: Power Distribution Module Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on engine mount on left and right.

Tightening torque: 22 11 2AZ .

Fig 9: Screws On Engine Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Schematic diagram:

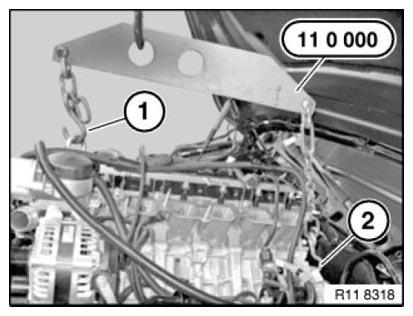

Screw towing eye (1) into cylinder head.

Tightening torque: 11 12 5AZ .

Attach special tool 11 0 000 to engine crane.

Suspend special tool 11 0 000 only from designated mounting eyelets (2).

The installation eye is in close proximity to starter motor.

Fig 10: Attaching Special Tool (11 0 000) To Engine Crane

Courtesy of BMW OF NORTH AMERICA, INC.

Lift engine out with engine crane.

Assemble engine.

Check function of DME.
