41 34 041 Replacing Tail Panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

STRIP DOWN  vehicle.

Follow procedures for REPAIR STAGE 2 .

The following new body parts are required:

The following consumables are required:

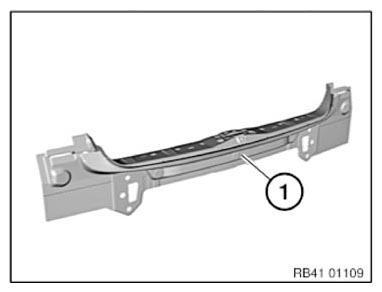

Fig 1: Identifying Rear Trim Panel
G10167051Courtesy of BMW OF NORTH AMERICA, INC.
Material Quantity
Adhesive K5b 1
Blind rivets N3 22
Punch rivets N4 2
Punch rivets N5 8
EMC screws 6
Cleaning agent R1 1
Sealant D1 1
Cavity wax remover

Removing rear trim panel

Operation is partially described on the left side. Right side identical.

Open welded connections in areas (1).

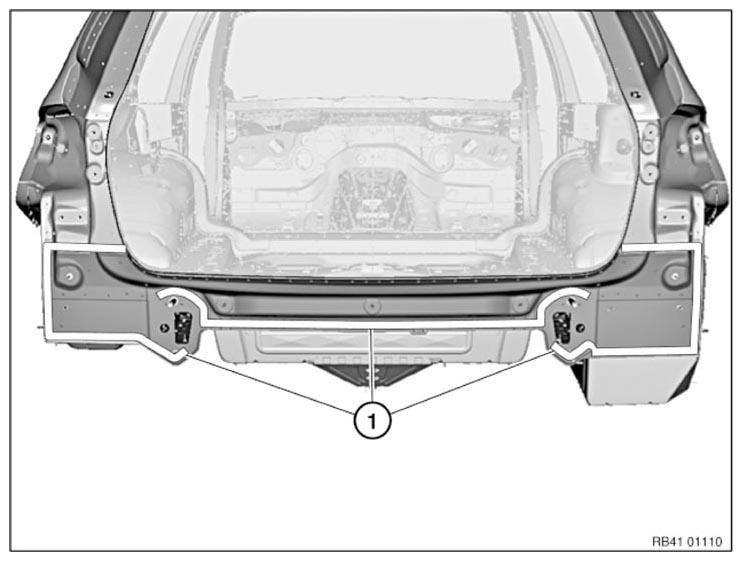

Fig 2: Locating Welded Connections
G10167052Courtesy of BMW OF NORTH AMERICA, INC.

Release the welded connections in areas (1) and remove the tail panel.

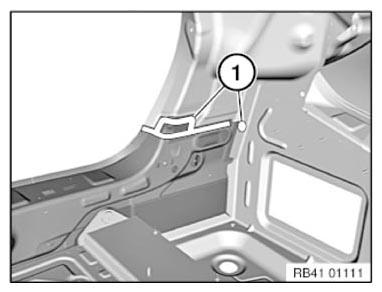

Fig 3: Locating Welded Connections
G10167053Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Operation is partially described on the left side. Right side identical.

Mark area (1) in accordance with dimensions 15 x 20 mm and cut.

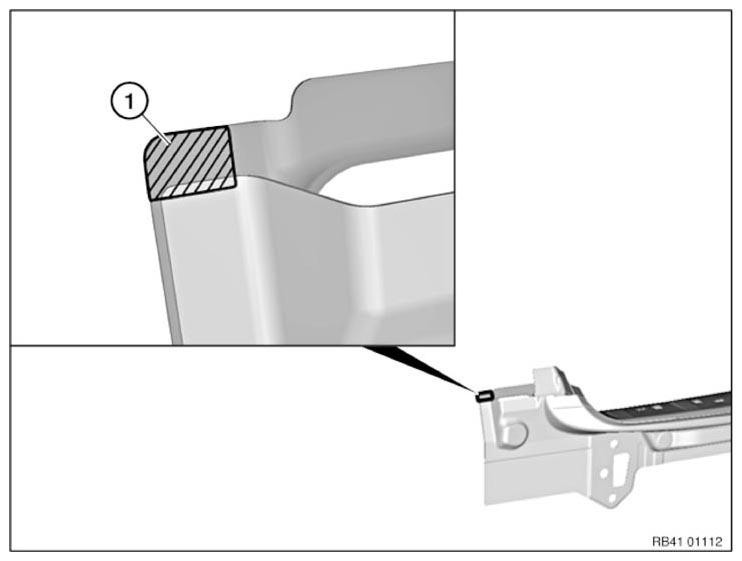

Fig 4: Identifying Cutting Area
G10167054Courtesy of BMW OF NORTH AMERICA, INC.

The bore holes (1) can be enlarged slightly if necessary.

Diagram similar.

Fig 5: Identifying Bore Holes
G10096698Courtesy of BMW OF NORTH AMERICA, INC.

Slide in rear trim panel (1) from bottom upwards.

Adjust rear trim panel in combination with rear lid and rear lights to fit and secure.

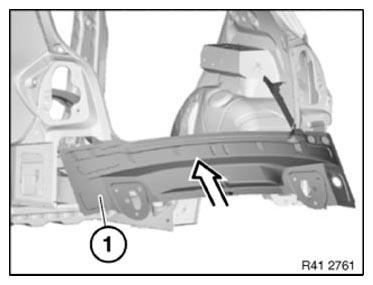

Fig 6: Sliding-In Rear Trim Panel
G10096699Courtesy of BMW OF NORTH AMERICA, INC.

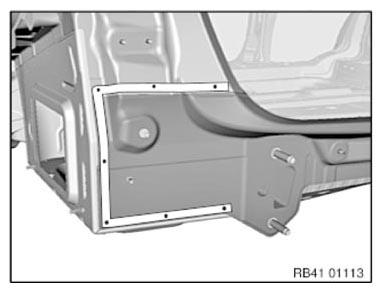

In area (1) set seven 4.2 mm dia. bore holes for blind rivets.

IMPORTANT: Retaining screws must not be used in area in area of tailgate seal.
Fig 7: Identifying Area For Setting Blind Rivet Bore Holes
G10167057Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) create four 4.2 mm dia. bore holes for blind rivets:

Installation note:

When installing, insert the blind rivets from the outside to the inside.

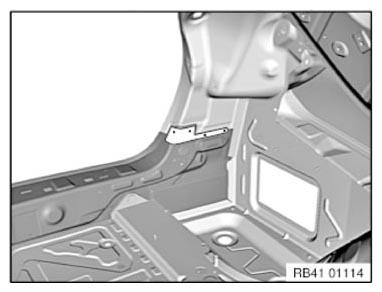

Fig 8: Identifying Area For Blind Rivet Bore Holes
G10167058Courtesy of BMW OF NORTH AMERICA, INC.

On both vehicle sides, prepare areas (1) for MAG welding.

Remove new part and deburr holes.

Fig 9: Identifying MAG Welding Areas
G10096702Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Do not grind/sand new part in area of bonding surfaces.

Installing rear trim panel:

Clean all  bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces.

Do not apply adhesive on either vehicle side in area (1).

Fig 10: Identifying Adhesive Exclusion Area
G10096703Courtesy of BMW OF NORTH AMERICA, INC.

Mount rear trim panel (1) and secure with blind rivets.

When inserting new parts, make sure there is sufficient adhesive on bonding surfaces.

Fig 11: Sliding-In Rear Trim Panel
G10096699Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Three-plate connection.
In area (1) use 8 punch rivets N5 offset on both sides.
Fig 12: Identifying Area For Punch Rivets
G10167062Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) set one punch rivet N4.

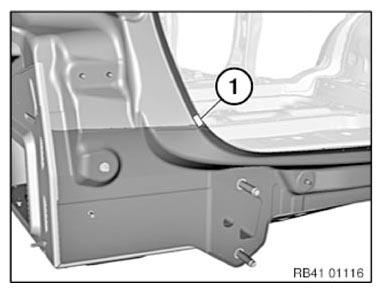

Fig 13: Identifying Area For Punch Rivet
G10167063Courtesy of BMW OF NORTH AMERICA, INC.

Press rear trim panel in areas (1) and remove emerging adhesive.

Before the adhesive hardens, install the support for the bumper panel.

IMPORTANT: Prevent emerging adhesive from coming into contact with support.
Do not use any cleaning agents containing solvents.

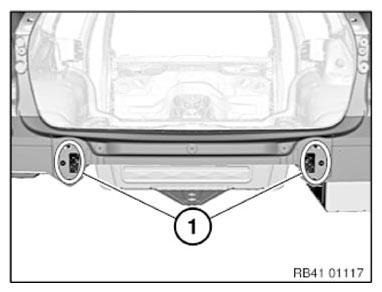

Fig 14: Identifying Adhesive Areas
G10167064Courtesy of BMW OF NORTH AMERICA, INC.

On each vehicle side, introduce 2 MAG weld seams (1). Length approx. 20 mm.

Fig 15: Identifying MAG Welding Areas
G10096702Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of the adhesive install 6 EMC SCREWS  in the areas (1).

Fig 16: Identifying Installation Area For EMC Screws
G10167066Courtesy of BMW OF NORTH AMERICA, INC.
