41 62 200 Replacing Tailgate Hinge Mechanism

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Necessary preliminary tasks:

Remove REAR WINDOW
Remove COVER for rear window frame

Release screw (1).

Tightening torque 41 62 1AZ .

Unfasten screws (2).

Tightening torque 41 62 6AZ .

Remove hinge.

Installation note:

ADJUST TAILGATE .

Repair paintwork damage on the screws.

Fig 1: Identifying Screws

G06978471

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove ground connections.

Remove stop pad (2).

Fig 2: Identifying Stop Pad And Screws

G10167133

Courtesy of BMW OF NORTH AMERICA, INC.

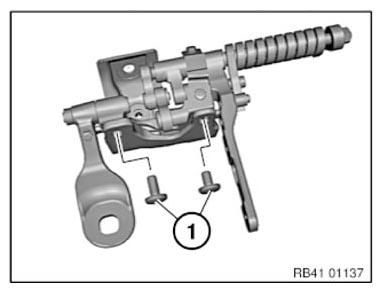

IMPORTANT: Note different screw lengths (1) during installation.

Fig 3: Identifying Different Screw Lengths

G10167136

Courtesy of BMW OF NORTH AMERICA, INC.
