00 11... Checking/topping up oil level in rear axle final drive
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
Risk of damage!
To avoid serious damage to the rear axle final drive, it is essential to use only APPROVED OILS in the rear axle final drive.
Necessary preliminary work:
- If necessary, remove TRAILING LINKS .
- If necessary, remove VIBRATION ABSORBER ON THE REAR AXLE DIFFERENTIAL .

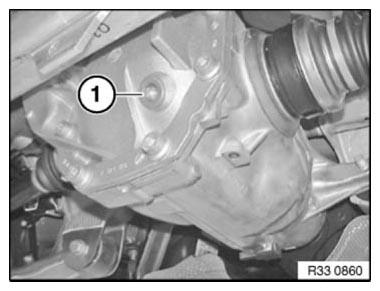

Open screw plug (1).
Tightening torque 33 11 2AZ .
Check oil level.
If necessary, pour in final drive oil up to lower edge of opening for screw plug (1).
Installation note:
Renew screw plug (1) with O-ring.
