33 31 017 Removing and installing/replacing vibration absorber
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Different vibration absorbers are installed depending on the vehicle equipment and motorization.
The vibration absorbers have different nominal frequencies depending on the equipment and motorization.
The nominal frequency is noted on the vibration absorber and its observation is mandatory.
The vibration absorbers have different nominal frequencies depending on the equipment and motorization.
The nominal frequency is noted on the vibration absorber and its observation is mandatory.

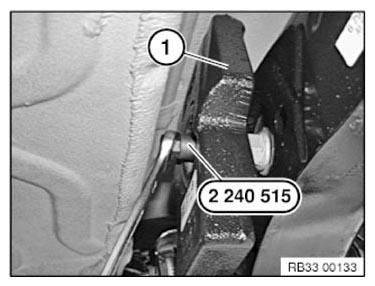

Release screw on vibration absorber (1) with special tool 2 240 515 and ring spanner (AF 13).
Tightening torque 33 17 3AZ .
Remove vibration absorber (1).

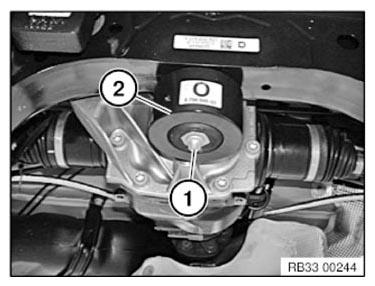

Release screw (1).
Tightening torque 33 17 4AZ .
Remove vibration absorber (2).

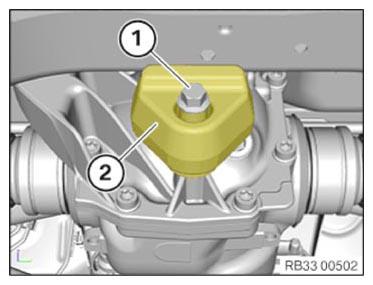

Release screw (1).
Tightening torque 33 17 5AZ .
Remove vibration absorber (2).
Installation note:
It is mandatory to ensure correct installation position. The flat side of the vibration absorber (2) faces the rear axle support.
