32 00 620 Adjusting rear axle

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Vehicles with ACC only:

After an adjustment of the rear axle which alters the driving axis, check and set the ADJUSTMENT OF ACC SENSOR .

Necessary preliminary tasks:

Remove left and right COVERS from camber arm.

NOTE: A camber change always means a toe change as well. The camber must therefore be adjusted first.

Adjusting camber:

Replace nut (1) and apply 5 Nm.

Turn eccentric bolt (2) to adjust camber to setpoint value.

Tighten nut (1).

Tightening torque 33 32 9AZ .

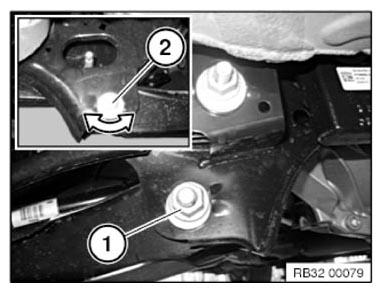

Fig 1: Identifying Rear Axle Nut And Eccentric Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting toe:

Replace nut (2) and apply 5 Nm.

Turn eccentric bolt (1) to adjust toe to setpoint value.

Tighten nut (2).

Tightening torque 33 32 7AZ .

Fig 2: Identifying Rear Axle Nut And Eccentric Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
