33 32 188 Removing and installing/replacing left or right camber arm cover
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

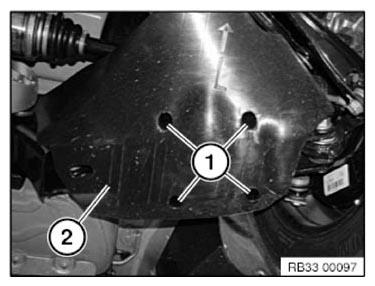

Unscrew nuts (1).
Tightening torque 33 32 11AZ .
Remove cover (2).
Installation note:
Replace nuts.
Observe positions of marks for L (left) and R (right).
The arrow on the cover points toward the front of the vehicle.
