84 50 060 Removing and installing/replacing Bluetooth aerial (up to 03/2010)

Necessary preliminary tasks:

• Remove BOTH TRIM PANELS FOR ROOF PILLAR
• Remove BOTH REAR GRAB HANDLES
• Remove INTERIOR ROOF LIGHT
• Remove UPPER B-PILLAR TRIM
• Remove BOTH FRONT GRAB HANDLES

Remove auxiliary brake light trim (1) in direction of arrow from headlining (2).

Fig 1: Removing Auxiliary Brake Light Trim From Headlining

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip headlining.

Fig 2: Locating Headlining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 3: Identifying Interior Roof Light Screw

Courtesy of BMW OF NORTH AMERICA, INC.

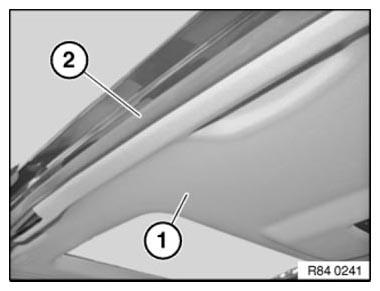

Partially lower headlining (1).

Installation note:

Make sure edge protection (2) is correctly seated.

Fig 4: Identifying Lower Headlining And Edge Protection

Courtesy of BMW OF NORTH AMERICA, INC.

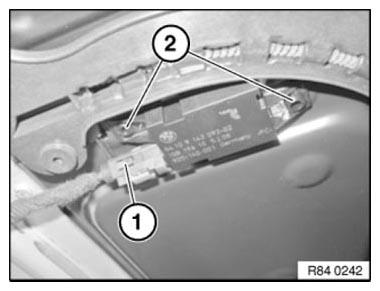

Unfasten plug connection (1) and disconnect.

Unclip Bluetooth aerial (2) and remove.

Fig 5: Identifying Bluetooth Aerial And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
