65 24 020 Removing and installing/replacing left or right blocking circuit
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM PANEL FOR ROOF PILLAR AT REAR .

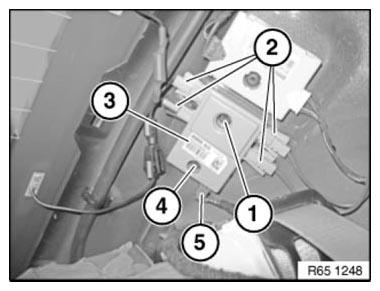

Release screw (1).
If necessary, release screw (4).
Unlock plug connections (2) and disconnect.
If necessary, disconnect plug connection (5).
Remove blocking circuit (3) from C-pillar.
Installation:
Position blocking circuit (3) so that positioning pin on back engages in associated hole.
