65 12 265 Removing and installing/replacing DVD player in rear console: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

F01/02: Clamp off BATTERY EARTH LEAD
F03: Remove both battery earth leads
Remove REAR CENTRE CONSOLE TRIM
Remove CENTRE ARMREST STORAGE COMPARTMENT

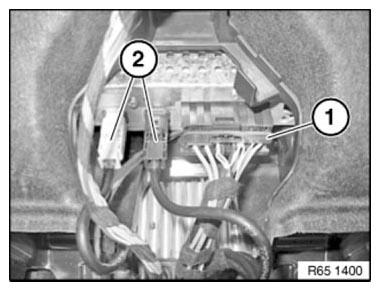

Unlock plug connections (1) and (2) and disconnect.

Fig 1: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove DVD player (2).

Fig 2: Identifying DVD Player And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
