65 12 053 Removing and installing/renewing central bass speaker-passenger side- (under front seat)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT PASSENGER SEAT .
Remove PANEL FOR DOOR PILLAR .

The following operations are described for the left side. The procedure for the right side is identical.

Pull trim (1) in direction of arrow towards rear and lift out.

Fig 1: Pulling Trim

Courtesy of BMW OF NORTH AMERICA, INC.

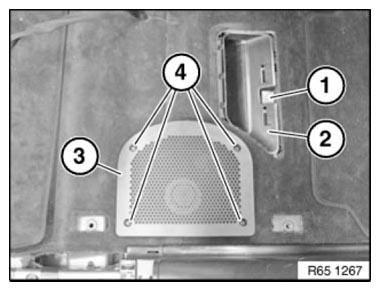

Release plastic nut (1).

Feed out air duct (2).

Release screws (4).

Remove central bass speaker cover (3).

Fold back floor trims.

Fig 2: Identifying Speaker Cover, Air Duct, Plastic Nut And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

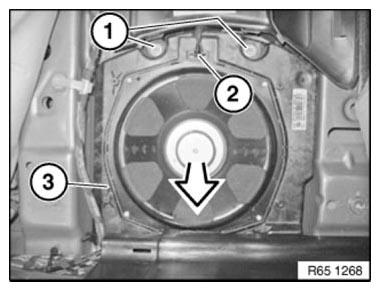

Unscrew nuts (1).

Unfasten plug connection (2) and disconnect.

Feed out central bass carrier (3) in direction of arrow.

Fig 3: Removing Central Bass Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
