Removing and installing front seat, front passenger side

Necessary preliminary tasks:

• Remove FRONT CRASH-ACTIVE HEADREST
• Remove COVERS ON SEAT RAILS

Installation note:

• Powerlok screws must be replaced and must not  be reused
• Powerlok screws are mechanical screw locks with trilobular threads

Move front seat rearwards.

Release screws (1).

Installation note:

Replace screws.

Tightening torque 52 10 01AZ .

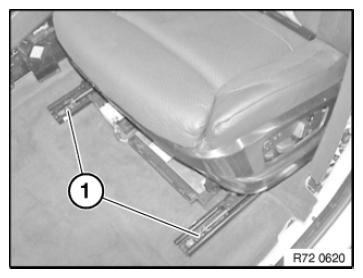

Fig 1: Identifying Front Seat Rearwards Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Move front seat forwards.

Release screws.

Installation note:

Replace screws.

Tightening torques 52 10 01AZ .

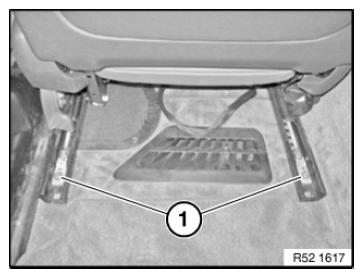

Fig 2: Identifying Front Seat Forwards Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Move front seat upwards.

Release screw (1) on front seat.

Installation note:

Replace screw.

Tightening torque 72 11 02AZ .

Feed out belt end fitting (2).

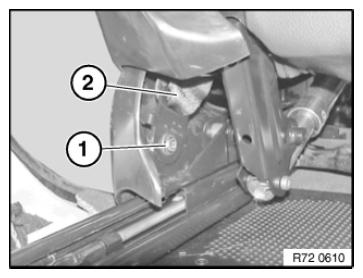

Fig 3: Identifying Belt End Fitting And Front Seat Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Carpet must not project between seat rail and floor panel in area of attachment points (creaking noise).

Unclip cover (1) towards front.

Release cable strap on plug connection.

Installation note:

Replace defective cable strap.

Unfasten plug connection (2) and disconnect.

Unclip wiring harness from seat mechanism.

Carefully lift out front seat.

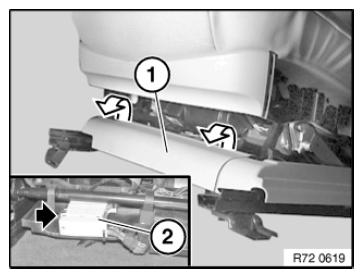

Fig 4: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure wiring harness installation arrangement is correctly routed in order to avoid creaking noises, jamming or collisions.

Clip in cable clip for wiring harness.

Lay wiring harness only in area (1) of cover.

Fitting the wiring harness between the carpet and the cover in control unit area (2) will result in creaking noises.

Carry out a complete forward/back adjustment with front seat.

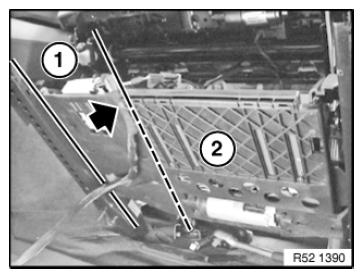

Fig 5: Locating Wiring Harness Installation Area

Courtesy of BMW OF NORTH AMERICA, INC.
