63 21 170 Removing and installing/replacing left or right rear light (on tailgate)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COMPLETE REAR CENTRE TRIM

Unscrew nuts (1).

Disconnect plug connection (2).

Remove rear light (3).

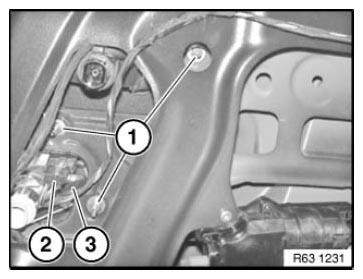

Fig 1: Identifying Plug Connection, Rear Light And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove BULBS .

If necessary, replace CHROME TRIM .
