51 13 400 Removing and installing or replacing rear center trim

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

If necessary, remove license plate
Remove PANEL FOR TAILGATE

NOTE: Detaching rear center trim is shown on the left side; proceed in same way for detaching on the right side.

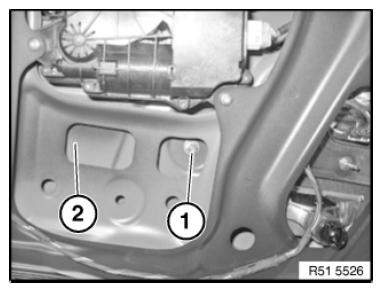

Release nut (1) on rear center trim (2).

Tightening torque 51 13 1AZ .

Fig 1: Identifying Rear Centre Trim With Nut

Courtesy of BMW OF NORTH AMERICA, INC.

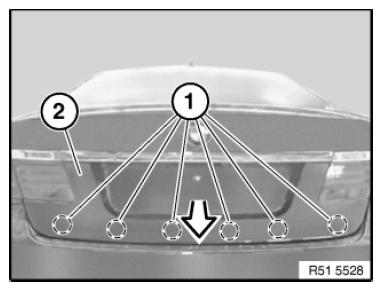

Unclip plastic clips (1) with rear lid opened.

Remove complete rear center trim (2) in direction of arrow.

Fig 2: Removing Rear Centre Trim With Plastic Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

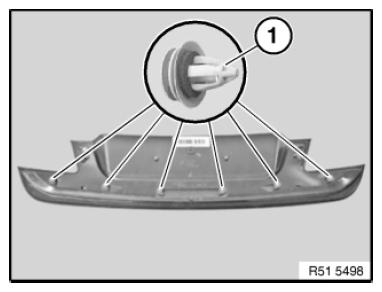

If necessary, replace faulty plastic clips (1).

Fig 3: Identifying Plastic Clips

Courtesy of BMW OF NORTH AMERICA, INC.
