63 99... Replacing bulb for rear make-up mirror

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MAKE-UP MIRROR

WARNING: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Unclip holders (1) from make-up mirror (2).

Carefully remove cover (3) towards top.

Installation:

Make sure cover (3) is correctly seated.

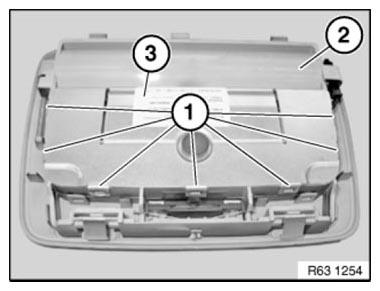

Fig 1: Identifying Make-Up Mirror With Holder And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off bulbs (1) in direction of arrow.

Installation:

Note BULB TYPE .

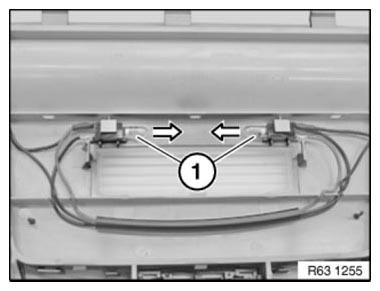

Fig 2: Pulling Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
