51 44 180 Removing and installing/replacing make-up mirror in rear cabin

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Carefully lever out make-up mirror (1) with special tool 00 9 317 in direction of arrow.

Disconnect plug connection behind and remove make-up mirror (1).

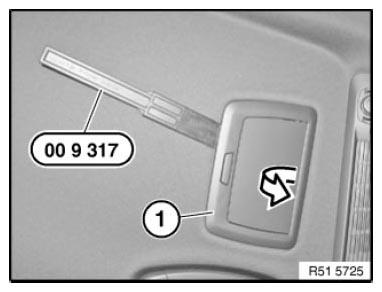

Fig 1: Removing Make-Up Mirror With Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guides (1) and catches (2) are correctly seated.

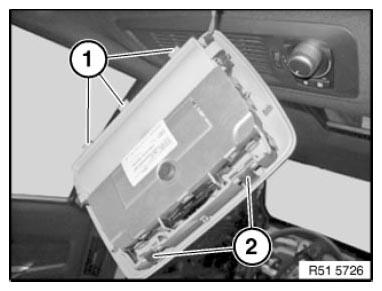

Fig 2: Identifying Guides And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
