63 31 176 Removing and installing/replacing LED for center armrest storage compartment

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTRE ARMREST STORAGE COMPARTMENT

Release cable tie (1).

Press LED (2) out of center armrest storage compartment (3).

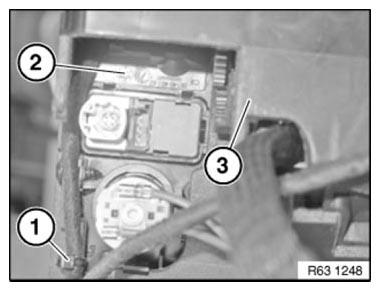

Fig 1: Identifying LED, Cable Tie And Centre Armrest Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Detach trim (1) from LED (2).

Remove LED (2) from center armrest storage compartment (3).

Installation:

Make sure trim (1) is correctly seated on LED for center armrest storage compartment (2).

Make sure electrical lead is correctly laid.

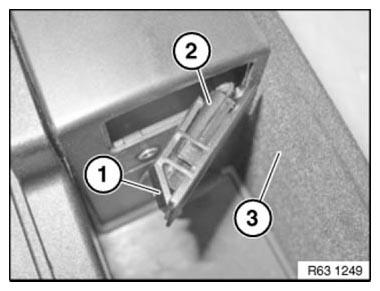

Fig 2: Identifying LED And Centre Armrest Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.
