63 11 550 Removing and installing/replacing headlight driver module

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon lighting system: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

Necessary preliminary tasks:

Remove FRONT LEFT WHEEL ARCH TRIM

Release screws (1) on headlight (2).

Tightening torque 63 12 3AZ .

Remove headlight driver module (3) in direction of arrow.

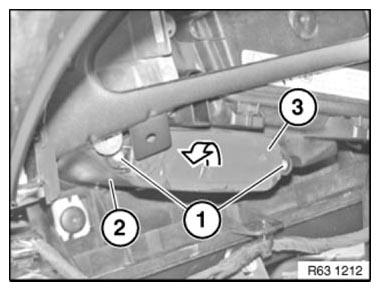

Fig 1: Removing Headlight Driver Module

G06886088

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect in direction of arrow from headlight driver module (2).

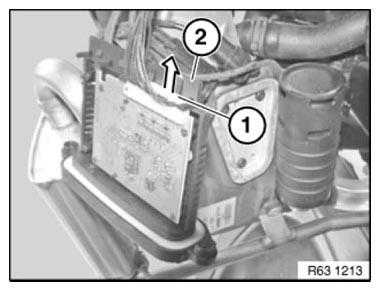

Fig 2: Disconnecting Plug Connection

G06886089

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When fitting, make sure headlight driver module (1) is correctly seated on sealing sleeve (2).

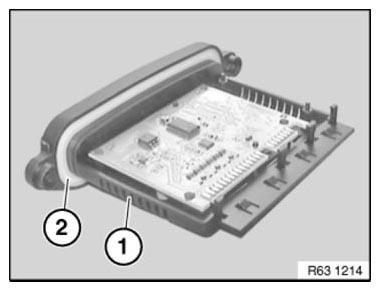

Fig 3: Identifying Headlight Driver Module On Sealing Sleeve

G06886090

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Teach in headlight driver module (1) via vehicle diagnosis.

Service functions
Body
Lights
Learning turn signal indicator
