63 17 200 Removing and installing (replacing) left headlight for target illumination

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The time value of this job item does not include adjustment of the headlight for target illumination!
ADJUSTMENT OF HEADLIGHT FOR TARGET ILLUMINATION must be carried out after removal and installation!

IMPORTANT: Follow notes on HANDLING LED LIGHTS (HIGH-PERFORMANCE LED)

Necessary preliminary tasks:

Remove ORNAMENTAL GRILLE IN BUMPER PANEL

Release screw (1).

Tightening torque 63 12 7AZ .

Remove headlight for target illumination (2) out of bumper panel in direction of arrow.

Unlock associated plug connection and disconnect.

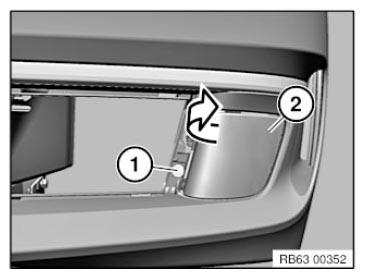

Fig 1: Removing Headlight For Target Illumination Out Of Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
Adjust HEADLIGHTS FOR TARGETED ILLUMINATION
