63 10 022 Adjusting dynamic light spot headlights (with headlight adjustment aid)

Fig 1: Identifying Distance Between Vehicle Front Surface And Wall

Courtesy of BMW OF NORTH AMERICA, INC.

Requirements for adjusting the Dynamic Light Spot headlight with headlight adjustment aid:

• Comply with TEST PREREQUISITES FOR HEADLIGHT ADJUSTMENT .
• Position vehicle in front of vertical surface, e. g. a wall (1), as shown.
• Distance (A): 4 - 10 m
• Dim lighting is helpful.
• Have a tape measure and black adhesive tape (maximum width of 2 cm) ready.

Position of mounting (2) on headlight adjustment aid (2 299 574) is specified:

• Here by way of example mounting (B) at B4.

Prepare the headlight adjustment aid (2 299 574) as shown:

• Insert rods (1) into mountings (2) with identification (A, B) and clamp.
• Insert rods (3) into mountings (2) with identification (C, D) and clamp.
• Position front mountings (C, D) with rods (3) on headlight adjustment aid (2 299 574) as follows:
  • Mounting (C) at C5
  • Mounting (D) at D5
  Fig 3: Adjusting Dynamic Light Spot Headlights Using Tool (2 299 574)
  Courtesy of BMW OF NORTH AMERICA, INC.
• Position rear mountings (A, B) with rods (1) on headlight adjustment aid (2 299 574) as follows:
  • Mounting (A) at A4
  • Mounting (B) at B4
• Secure the laser (4) on the adjustment aid of the headlight (2 299 574). To switch on the laser (4) slide up the flap in front of the laser (4).
Fig 4: Adjusting Dynamic Light Spot Headlights Using Tool (2 299 574)
Courtesy of BMW OF NORTH AMERICA, INC.

Position headlight adjustment aid (2 299 574) at marked openings (1) in engine compartment as shown.

Align headlight adjustment aid (2 299 574) with longitudinally adjustable rods (2) using bubble level (3).

Fig 5: Positioning Headlight Adjustment Aid (2 299 574) In Engine Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Position a suitable object, such as the displayed tool (4), laterally to the bead (3). Laser beam (1) must strike tool (4) at the point of intersection with bead (2).

If not, correct the alignment of the headlight adjustment aid (2 299 574).

Fig 6: Identifying Laser Beam

Courtesy of BMW OF NORTH AMERICA, INC.

Switch the ignition on.

Perform test procedure via path:

• Body
• Lights
• Headlights for targeted illumination

Determining distances:

Measure and note down distance (A) between middle of Dynamic Light Spot headlight (3) and floor (2).

Measure and note down distance (B) between laser beam (1) and floor (2) on the vehicle  .

Determine and note down distance (C):

Distance (C) = distance (B) - distance (A)

Fig 7: Measuring Distance Between Laser Beam And Floor

Courtesy of BMW OF NORTH AMERICA, INC.

Attach adhesive tape markings (3, 4, 5 shown in black in the graphic) to the wall:

1. Mark vertical laser beam (1) for example with adhesive tape (3) to wall (distance from floor (6) approx. 20 cm).
2. Measure distance (B) = 75 cm at top and bottom ends of adhesive tape (3) on both sides and mark. Connect the marks with adhesive tape (4).
3. Measure distance (C) from the previous operation from the horizontal laser beam (2) on both sides downwards and mark with adhesive tape (5).
Fig 8: Measuring Distance At Top And Bottom Ends Of Adhesive Tape
Courtesy of BMW OF NORTH AMERICA, INC.

Check adjustment of Dynamic Light Spot headlight as follows:

Light pattern of the Dynamic Light Spot headlight must be within the area (1) on both sides.

Here 1/3 of the light pattern must be above and 2/3 below line (2).

Fig 9: Checking Adjustment Of Dynamic Light Spot Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Examples of light patterns:

Dynamic Light Spot headlight, left side:

1. Incorrect setting: Horizontally too high, vertically too far right
2. Correct adjustment

   Dynamic Light Spot headlight, right side:

3. Incorrect setting: Horizontally too high, vertically correct
4. Correct adjustment

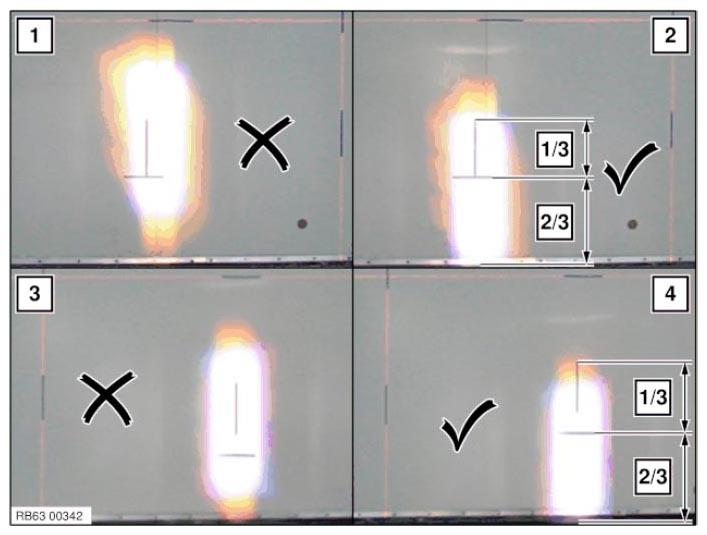

Fig 10: Identifying Light Patterns (Correct And Incorrect)
Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, adjust Dynamic Light Spot headlight (3) with screws (1, 2).

Fig 11: Identifying Dynamic Light Spot Headlight And Screws
