63 14 060 Removing and installing/replacing the front left or right side marker: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove FRONT WHEEL ARCH COVER (front section)

NOTE: Minimum object temperature of side marker and bumper panel ≥ 18 °C.
If this temperature is not achieved, the components must be preheated.

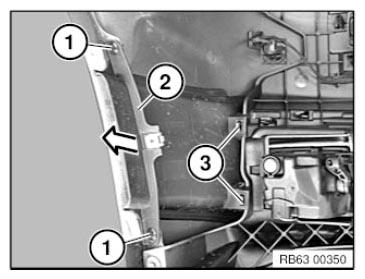

Release expanding rivets (1) and pull air duct (2) in direction of arrow out of guide (3).

Fig 1: Pulling Air Duct Out Of Guide

Courtesy of BMW OF NORTH AMERICA, INC.
