72 11 101 Removing and installing/replacing rear center seat belt

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR SEAT
Remove rear window shelf. See TRIM PANEL FOR STORAGE SHELF or TRIM PANEL FOR STORAGE SHELF WITH ROLLER SUNBLIND .

Release screw (1).

Tightening torque 72 11 21AZ .

Installation:

End fitting is coded against incorrect assembly.

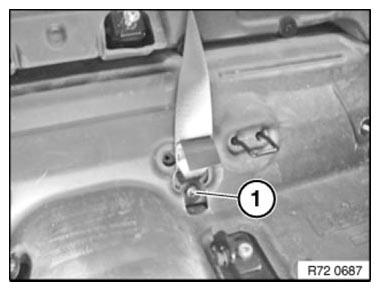

Fig 1: Identifying Rear Centre Seat Belt Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 72 11 20AZ .

Remove automatic reel with anchor fitting.

Installation:

Automatic reel is coded against incorrect installation.

Fig 2: Identifying Automatic Reel Anchor Fitting Nut

Courtesy of BMW OF NORTH AMERICA, INC.
