66 53 020 Removing and installing (replacing) reversing camera: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove CENTRE TAILGATE TRIM STRIP

Unlock latch mechanisms (2) and lever reversing camera holder (3) out of center tailgate trim strip (4).

Feed reversing camera (1) out of camera holder (3).

Replacement:

Remove protective film from lens of reversing camera (1).

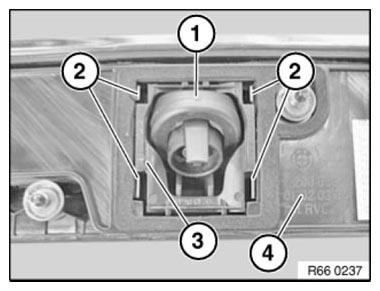

Fig 1: Identifying Latch Mechanisms, Camera, Holder And Centre Tailgate Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Calibrate REVERSING CAMERA
