51 13 220 Removing and installing / replacing middle trim strip on rear lid

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BOTH REAR LIGHTS

Release screws (1) on inside of rear lid.

Unlock and disconnect plug connection (2) - rear lid actuation button and plug connection (3) - reversing camera.

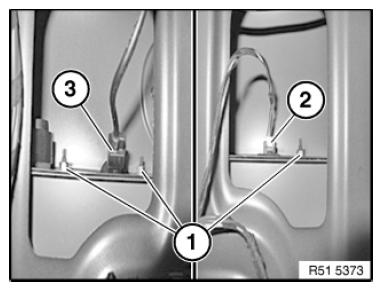

Fig 1: Identifying Rear Lid Actuation Button And Reversing Camera Plug Connection With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic originates from F01

Carefully detach trim strip (1) from rear lid (2) with special tool 00 9 317 and remove

Installation:

If necessary, replace damaged plastic clips (3).

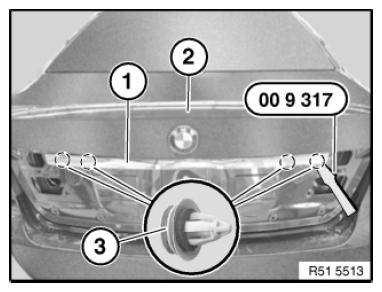

Fig 2: Detaching Trim Strip From Rear Lid Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
