Removing side wall

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

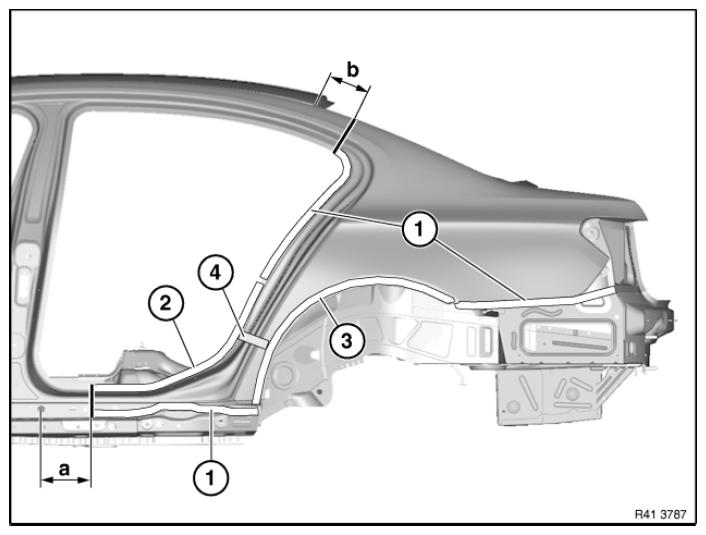

Fig 1: Identifying Cavity Sealing, Welded Connections Areas And Folded Bonded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only.
Compare position of severance cuts with REINFORCEMENT PLATES .
Dimension a = approx. 200 mm from center point of 25 mm dia. hole
Dimension b = approx. 115 mm from roof edge.
Open welded connections in areas (1).
Open spot-welded adhesive joints in area (2)
Open FOLDED BONDED CONNECTION in area (3).
Loosen side wall of cavity sealing (4).

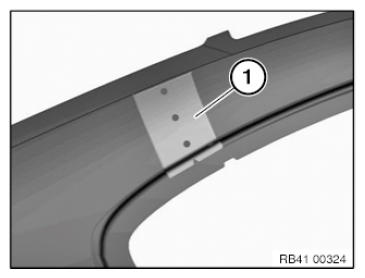

NOTE: In addition to the dimensions, the position of the separating cut can be determined using a TEMPLATE (1).

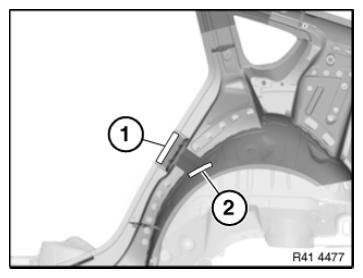

Fig 2: Identifying Template

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1) and (2).

IMPORTANT: In areas (2), the welding spots must be released from the side wall.

Take off side panel.

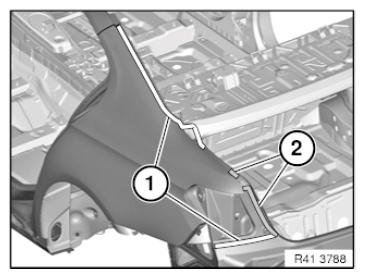

Fig 3: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Release bonded joint (2).

Remove lock striker reinforcement.

Fig 4: Identifying Welded Connections Areas And Bonded Joint

Courtesy of BMW OF NORTH AMERICA, INC.
