41 05 800 Releasing Bonded Folded Seam Connections

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

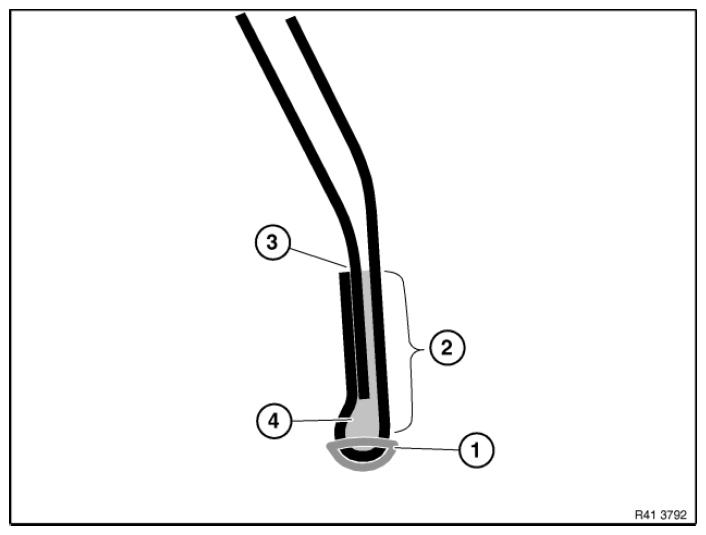

Fig 1: Identifying Bead Edge Area, Heated Area, Adhesive Residue And Sealing Material Remnants Area

Courtesy of BMW OF NORTH AMERICA, INC.

Remove area (1) of bead edge on wheel arch bend with a one-hand angle grinder and rough grinding wheel.
Heat area (2) with hot air blower.
CAUTION: Extract vapors and gases.
Release connection flange with chisel.
Grind adhesive residue (4) off wheel arch connection flange.
CAUTION: Wear a grinding dust mask.
Remove remnants of sealing material in area (3).
