41 34 041 Replacing Complete Tail Panel: Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Observe procedures in REPAIR STAGE 2 .
The following new body parts are required:

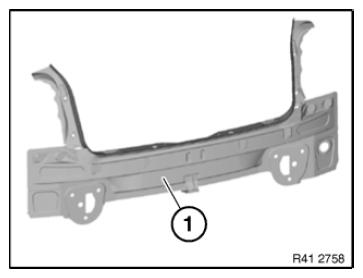

- (1) Rear trim panel
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| Blind rivets N3 | 40 |
| Punch rivets N4 | 8 |
| EMC screws | 10 |
| Cavity sealing wax remover | |
| Cleaning agent R1 | 1 |
| Sealant D1 |
