41 34 041 Stripping Operations - Replacing Tail Panel
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
The following list basically represents the removal sequence.
- Disconnect battery (job number: 61 20 900)
- Remove bumper trim (FR number: 51 12 156)
- Remove bumper carrier (FR number: 51 12 050)
- Remove center guide (FR number: 51 12 825)
- Remove guide for bumper on left and right (FR number: 51 12 828)
- Remove luggage compartment floor trim panel (FR number: 51 47 101)
- Remove luggage compartment storage compartment (FR number: 51 47)
- Remove tail panel trim at top (FR number: 51 46 050)
- Remove left luggage compartment wheel arch panel (job number: 51 47 151)
- Remove right luggage compartment wheel arch panel (FR number: 51 47 161)
- Remove striker for rear lid (FR number: 51 24 130)
- Remove rear lights (FR number: 63 21 180)
- Partially detach tailgate seal
NOTE:
Operation is described on the left side. Right side identical.

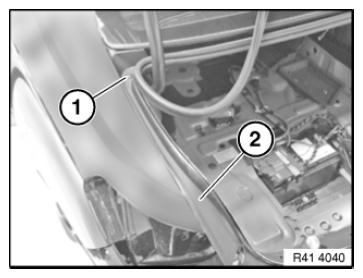

Lift out clip (1) and remove water channel cover (2).
NOTE:
Operation is described on the left side. Right side identical.

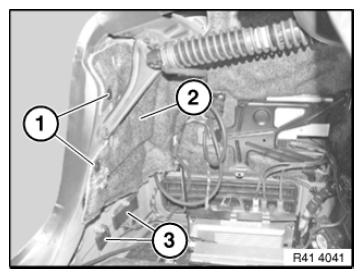

Lever out expanding rivets (1) and fold sound insulation (2) to one side.
Release nuts and remove ground support point (3).
Tightening torque 41 34 2AZ .

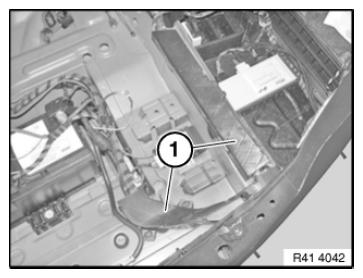

Release cable channel covers (1) and lay towards front.

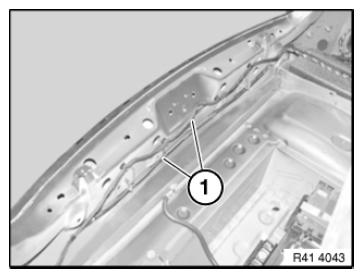

Release wiring harnesses (1) from rear trim panel and lay towards front.

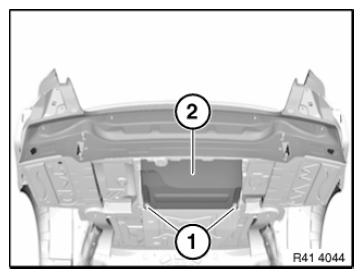

View from below.
Release nuts (1) and remove cover (2).
